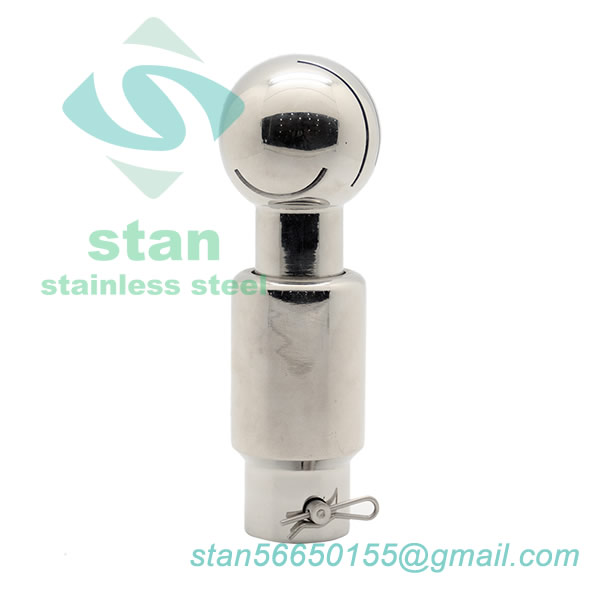

TCR Rotary Cleaning Ball

Application

TCR Series Sanitary Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving.

Technical Specification

• Max Temperature: 284°F (140°C)
• Working Pressure: 14.5-50Psi (1-3.5Bar)
• Cleaning Radius: 3.2-10ft
• Finished: mirroir or stain

Detailed specifications on the drawing label

• Available in size from 0.5"-2.5", DN15-DN65
• Standards: DIN, SMS, ISO / IDF
• End connections: butt-welded, clamp, thread, clip-on
• Body Materials: AISI-304 or AISI-316L

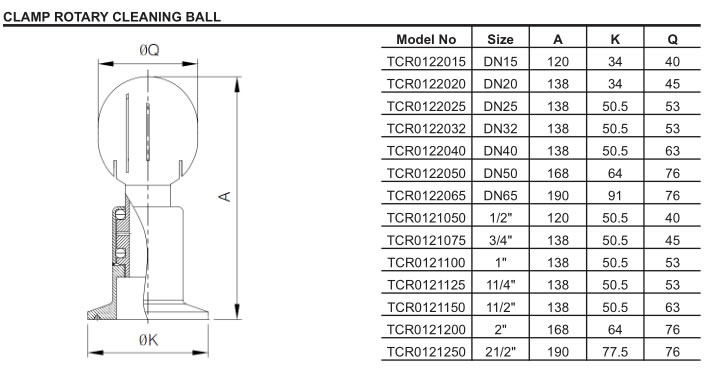

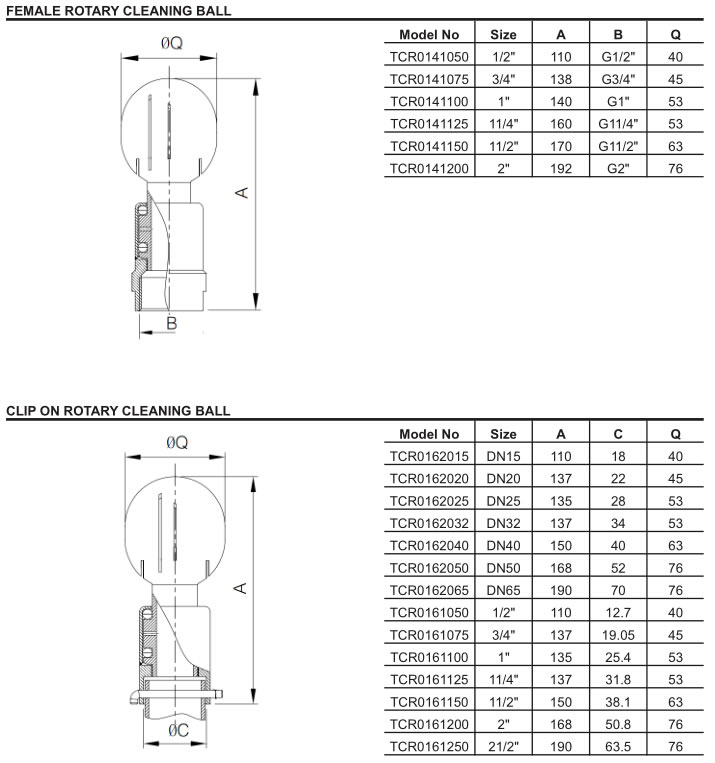

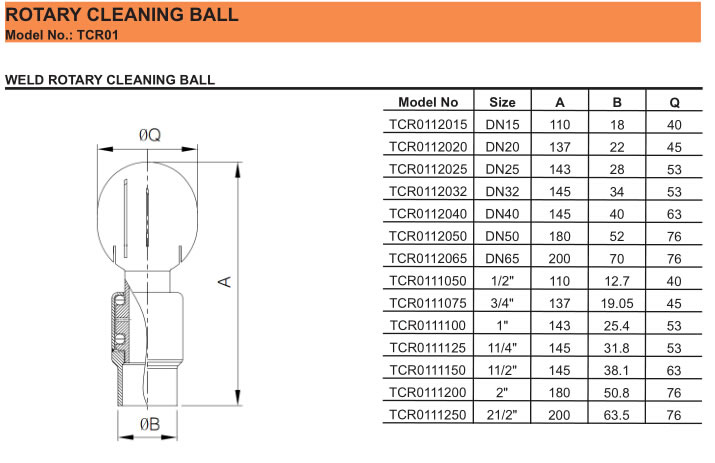

Drawing
