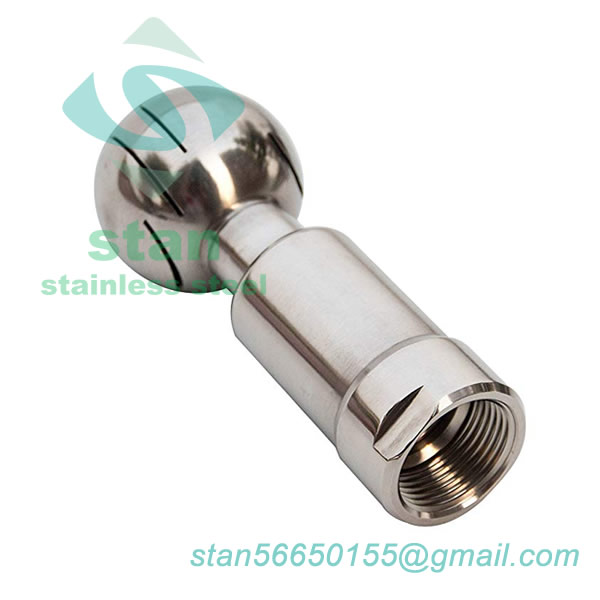

TCR Stainless Steel Rotary Tank Spray Female Cleaning Ball

TCR Series Sanitary Female Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving. Stainless Steel 304 Rotary Tank Spray Cleaning Ball 1/2" Female Connection 1 pack UPC:611677856595 Stainless Steel 304 Rotary Tank Spray Cleaning Ball 3/4" Female Connection 1 pack UPC:708210452380 Stainless Steel 304 Rotary Tank Spray Cleaning Ball 1" Female Connection 1 pack UPC:708210452397

Application

  • TCR Series Sanitary Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving.
  • Stainless Steel 304 Rotary Tank Spray Cleaning Ball 1/2" Female Connection 1 pack UPC:611677856595
  • Stainless Steel 304 Rotary Tank Spray Cleaning Ball 3/4" Female Connection 1 pack UPC:708210452380
  • Stainless Steel 304 Rotary Tank Spray Cleaning Ball 1" Female Connection 1 pack UPC:708210452397

Materials

Stainless Steel 304 or Stainless Steel 316L

Technical Specification

  • Max Temperature: 284°F (140°C)
  • Working Pressure: 14.5-50Psi (1-3.5Bar)
  • Cleaning Radius: 3.2-10ft
  • Finished: mirroir or stain

Detailed specifications on the drawing label

  • Available in size from 0.5"-2.5", DN15-DN65
  • Standards: DIN, SMS, ISO / IDF
  • End connections: butt-welded, clamp, thread, clip-on
  • Body Materials: AISI-304 or AISI-316L

Drawing

Drawing

Drawing

Drawing
