DIN 11864-2 Aseptic Flange Union

Application

This range of aseptic fittings has been developed by the German hygienic industry to meet the exacting needs of the food, chemical and pharmaceutical industries.

Three designs of pipe fittings have been tailored to accept 2 different styles of aseptic seals that effect a smooth interface within the pipe work whilst simultaneously achieving a metal to metal seat behind

the joint.

The seal sections used are referenced as “Form A” and “Form B” and both have distinctive profiles that are easily recognised. Form A is an O Ring Joint whilst Form B is a 2-part Square seal with a

secondary internal diamond section.

Materials

• Body: AISI-316L

Standard Design

• Standards: DIN 11866 / 11850, ISO1127
• Size available: DN10-DN100

Related Standards:

• DIN 11864-1 Form A - Aseptic Screwed Union
• DIN 11864-2 Form A -  Aseptic Flange Union
• DIN 11864-3 Form A -  Aseptic Tri-Clamp Union

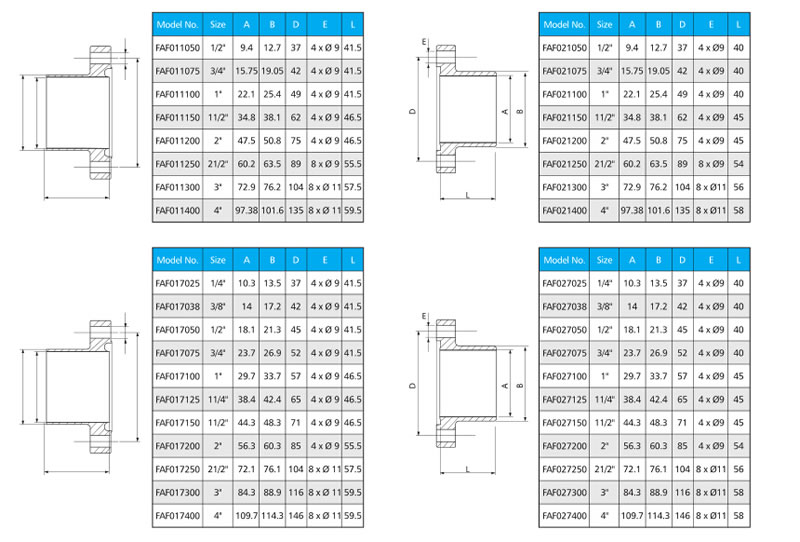

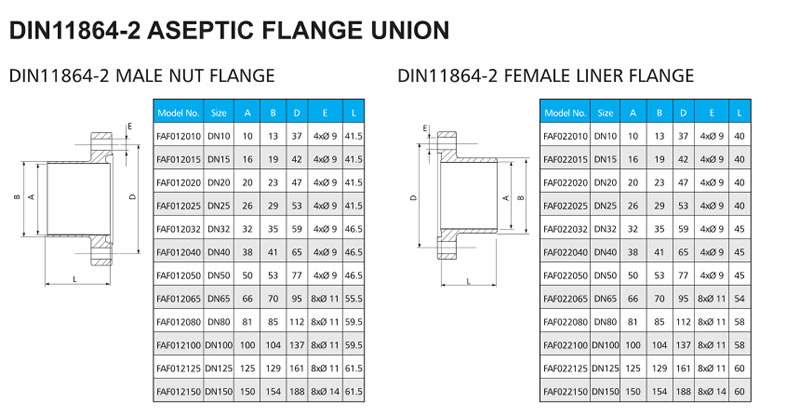

Drawing
