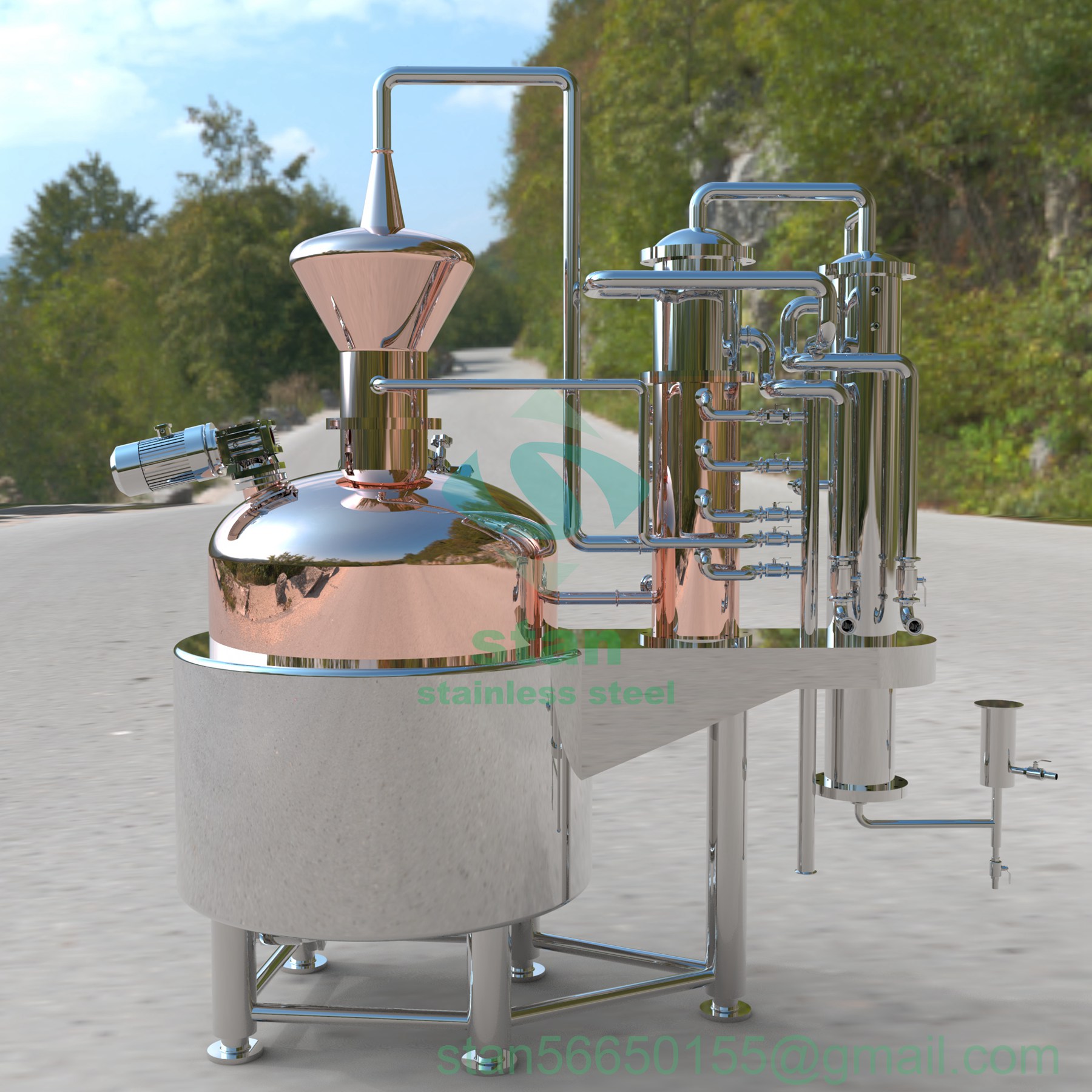

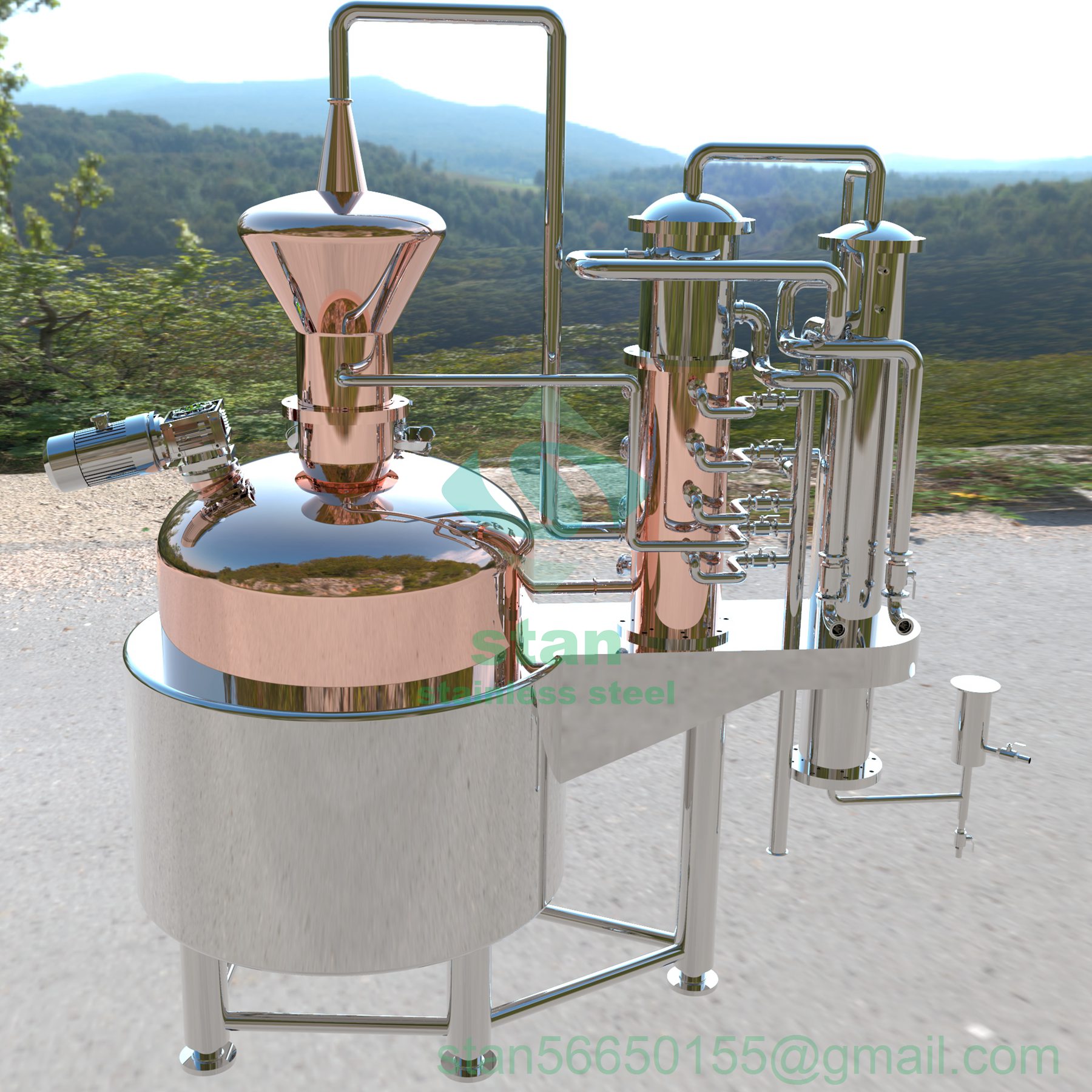

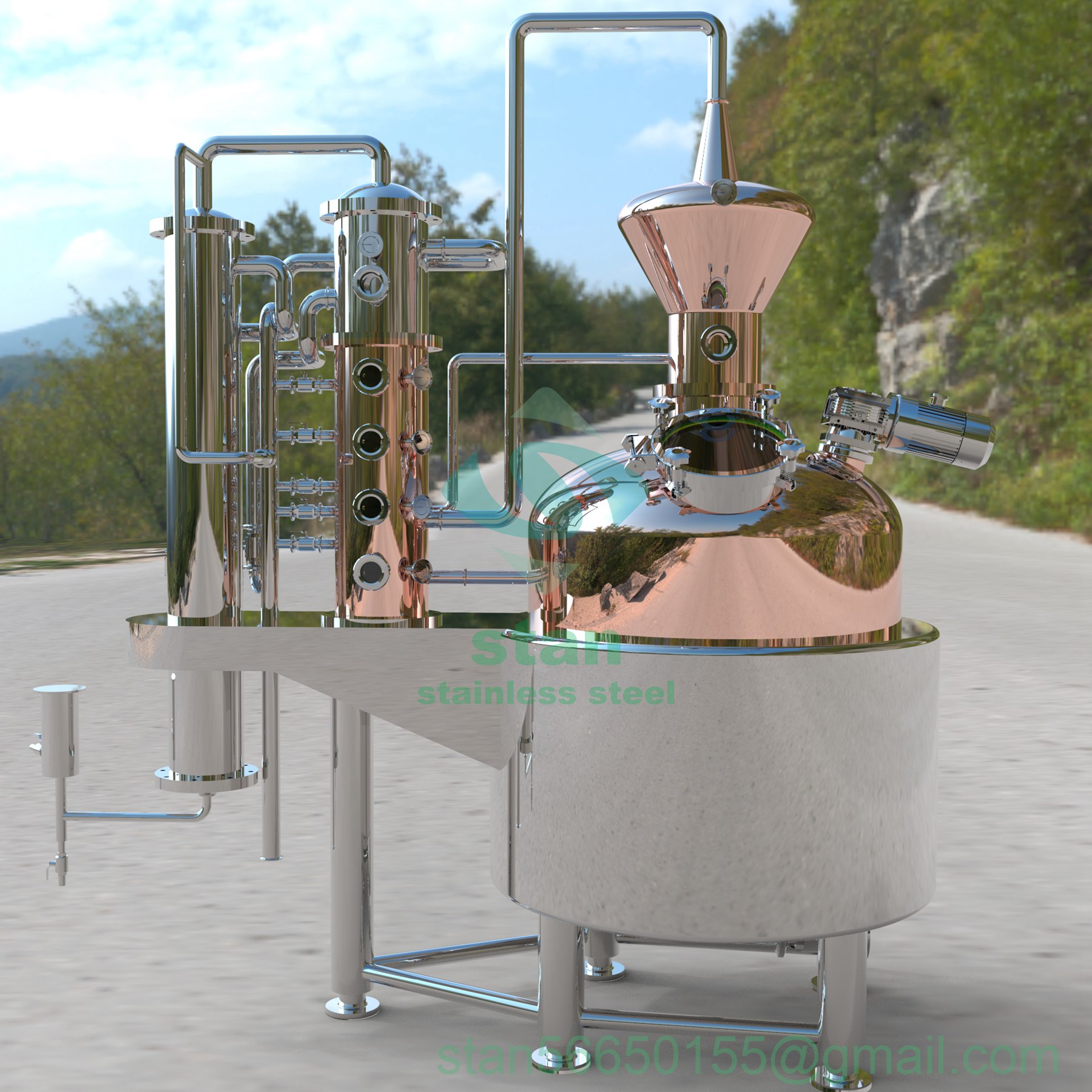

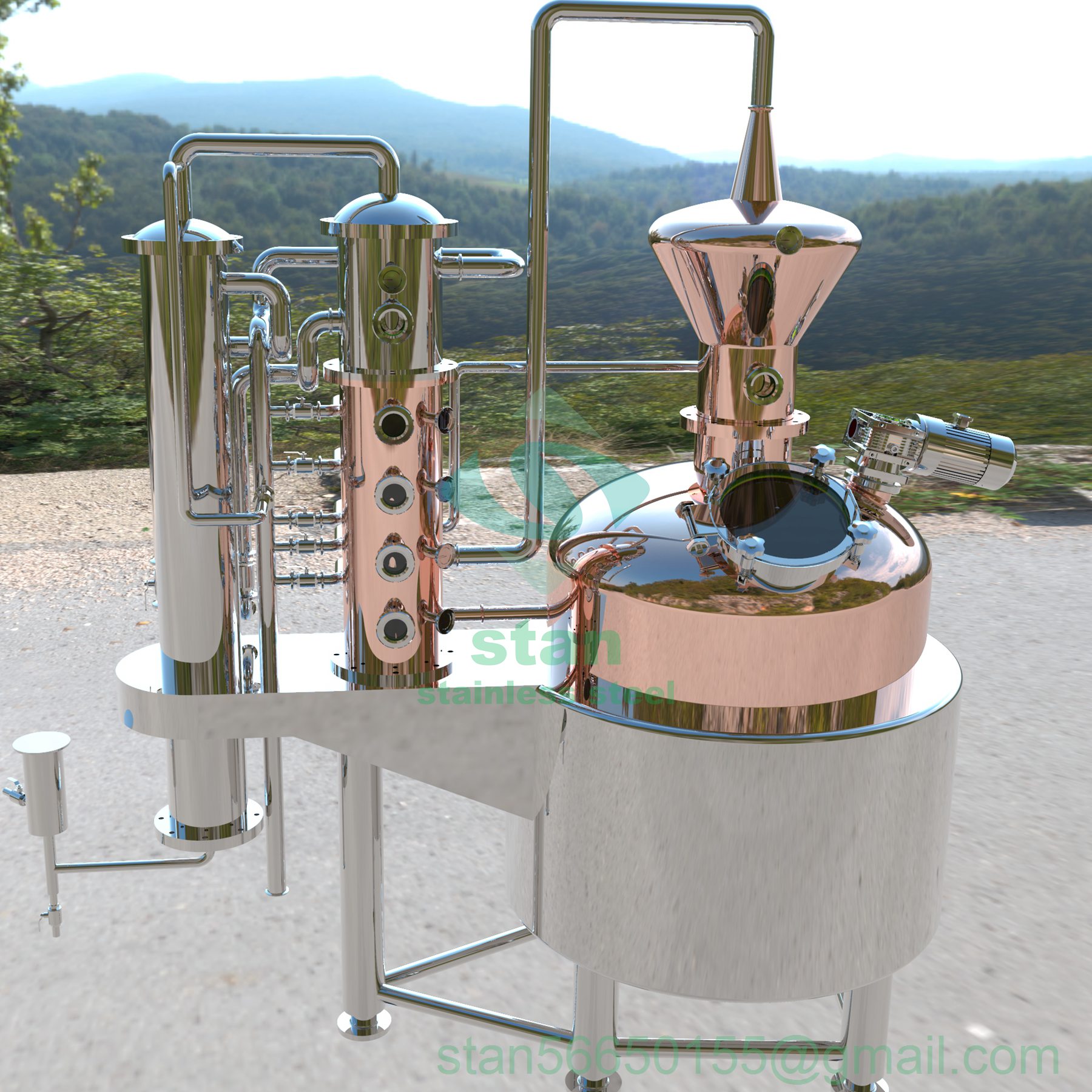

Copper Distiller Industrial Alcohol Whisky Distillation Equipment

Main Features:

1. Customization service
2. Technology&drawing support
3. Swirl finish,satin finish or mirror finish
4. with 3A,CE, UL,CSA,PED, SGS,TUV,ISO9001 certificates
5. CIP pump and fittings are available

Parameter:

• 500L working capacity pot; all stainless steel pot
• SS Steam jacketed and insulated
• with 219mm handhole with DN51 outlet and valve
• With top agitator (explosion proof CE approved motor)
• Motor Power: 0.75KW / 60rpm
• Copper Cu12200 Gooseneck, 3mm thickness
• 300mm Copper Distillation Column, 4 plates copper distillation, each plate has CIP ball and drain valves.
• 300mm SS Dephlegmator on the top of column
• 300mm SS Condenser
• 2 pcs SS Tube Legs
• SS parrot outlet
• Come with a CIP Cleaning Pump and all necessary SS CIP cleaning piping lines etc.
• Steam requirment: 50Kg/Hr
• Production time: 4 hours
• Max alcohol reached to 85%/ 170 Proof
