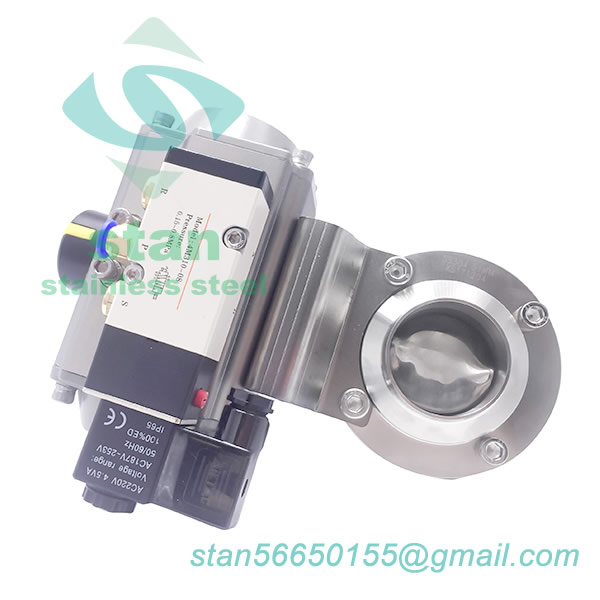

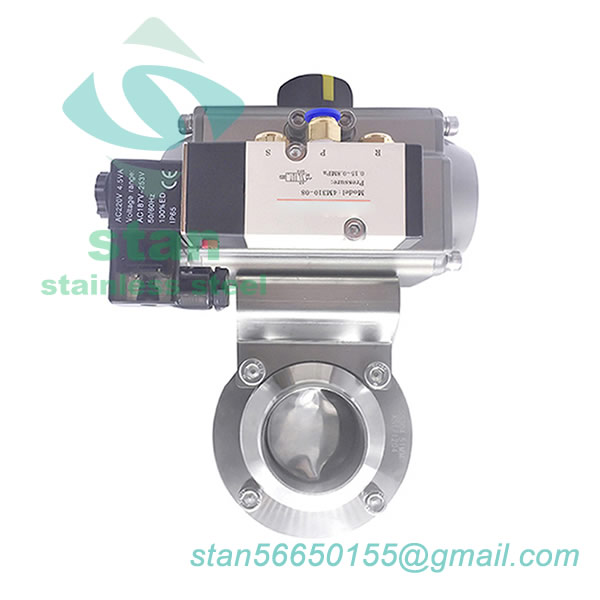

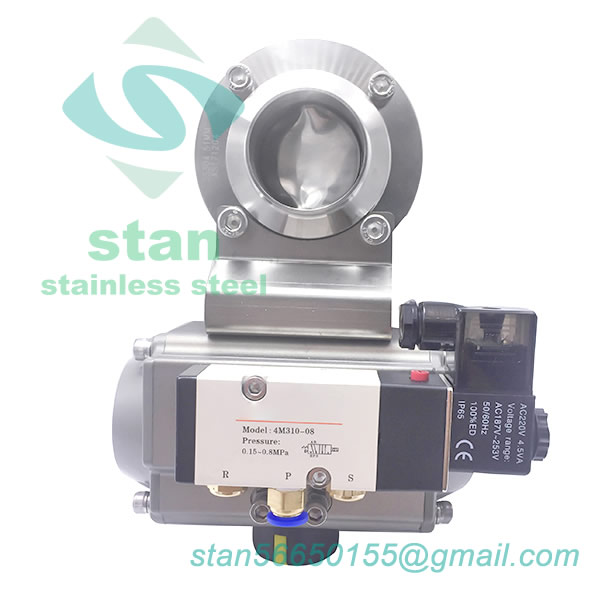

Stainless Steel Sanitary Pneumatic Actuator Tri Clamp Butterfly Valves with Solenoid Valve
Butterfly valve, no matter manually or automatically, can be uesd in most fluid product applications in food - processing , pharmaceutical and chemical industries.
| Standard | DIN, 3A, SMS, RJT |
| Flow Medium Parts | 304, 316L(1.4301, 1.4307, 1.4404) |
| Port Size | Dn20-200 or 1/2"-203.2MM |
| Connection | Weld, Male, Clamp, Flange ,Three-piece |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Max. pressure | 10 bar |
| Min. pressure | 0.2 bar |
| Working temperature | -10~135 ℃ |
| Application | It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by handle. |
| Three drive forms | Normally closed, normally opened and opened and closed by two air flues seperately. |
| Handle | Metal handle, reinforced nylon handle |
| Adjustable handle, built to order according to users' request. | |
| Advantage | 1. Sanitary condition passed FDA Certification |
| 2. With strong resistance to acid, alkali and high temperature | |
| 3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages | |
| 4. Appearance desigh: Keep pace with international latest designs | |
| 5. Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use |
