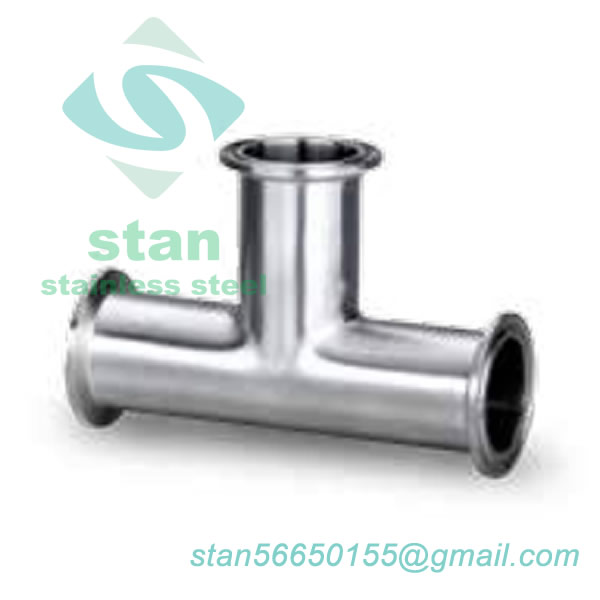

Sanitary Clamp Fittings - Clamp Tee FTC
Sanitary Clamp Fittings are most popular for easy assembly are breakdown of process lines and equipment.
• Material: AISI-304 and AISI-316L
• Size Available: 1/2˝ through 8˝ or DN10-DN200
• Standard: DIN, SMS, ISO/IDF, BS -BPE, DS and so on various standard series.
Application
Sanitary Clamp Fittings are the most popular fittings because of the easy assembly. QM Stainless offers clamp fittings in SS304 and SS316L materials in size from 1/2" to 8", with kinds of fittings standards, such as DIN, SMS, ISO/IDF, bS-RJT, DS and others.
Material
- Body: AISI 304 or AISI 316L
Standard Design
- Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
- Size available: 1/2"-8" or DN10-DN200

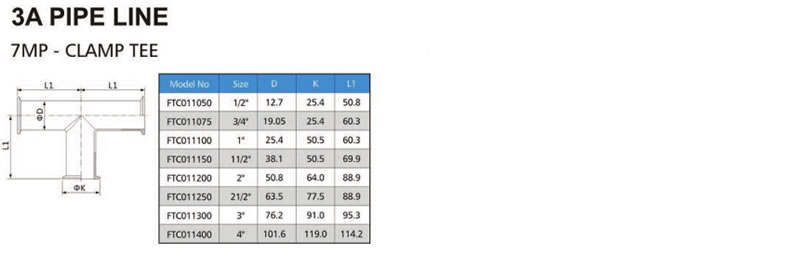

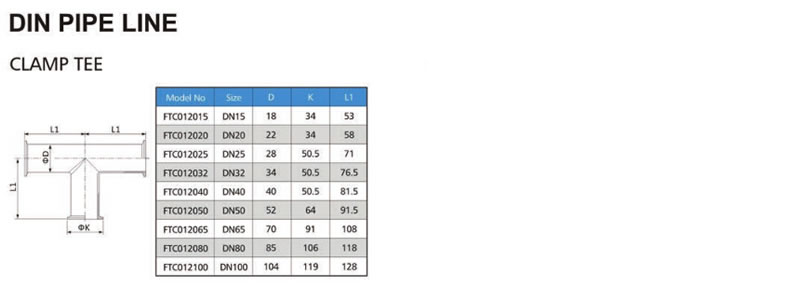

Drawing
