Sanitary Clamp Fittings - Clamps FC
Sanitary stainless steel Clamps, one of the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.
• Material: AISI-304, 316L
• Size Available: 1/2˝ through 8˝ or DN10-DN200
• Standard: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
Application
Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.
Materials
- Body: AISI-304, 316L
Standard Design
- Size available: 1/2"-8" or DN10-DN200
- Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
- End connections: Weld or Tri-clamp

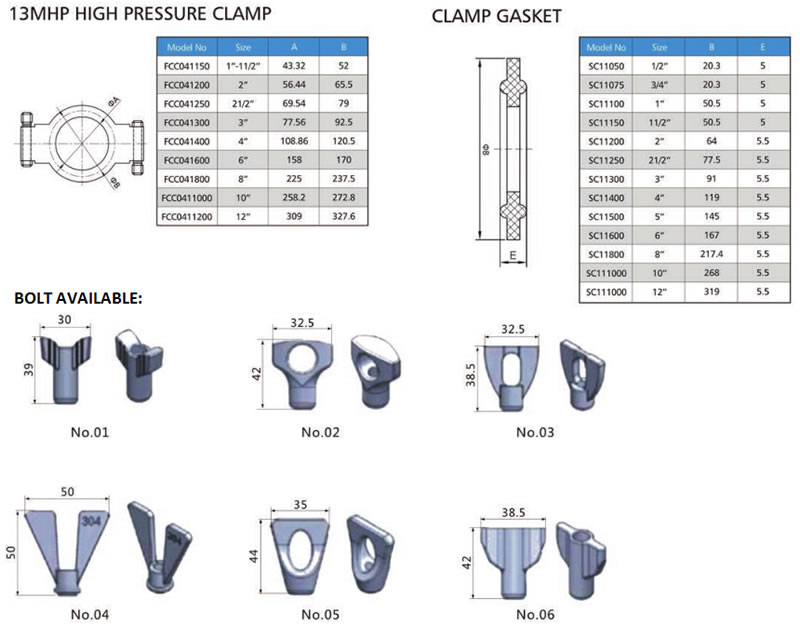

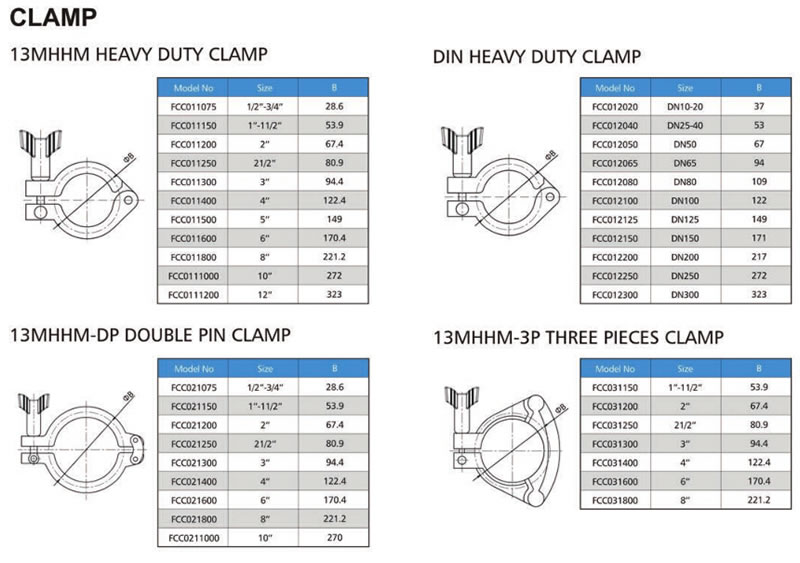

Drawing
