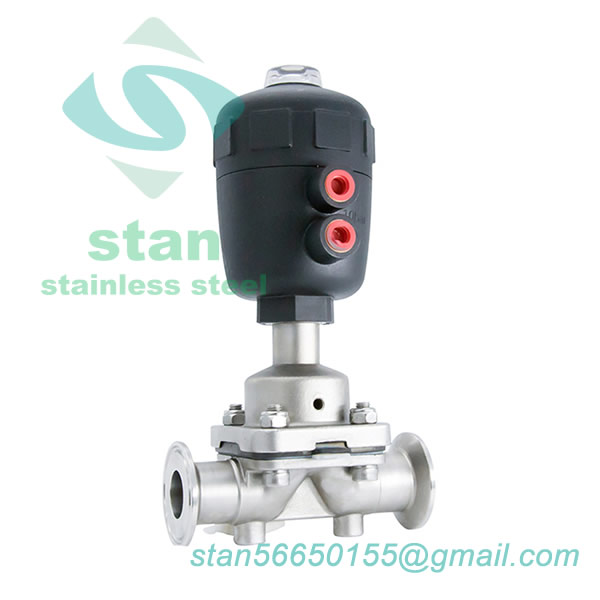

Hygienic Stainless Steel Two Way Pneumatic Diaphragm Valves
Diaphragm valves:Manual or air actuated.are specially designed for hygienic and asepsis processes in pharmacy industry.This valve is excellent for controlling as well as on/off fluid.
| Standard | DIN, 3A, SMS, RJT |
| Flow Medium Parts | 304, 316L(1.4301, 1.4307, 1.4404) |
| Port Size | 1"-3",DN20-DN65 |
| Connection | Clamp/weld/thread/special connection |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Max. pressure | 10 bar |
| Min. pressure | 0.2 bar |
| Working temperature | -10~135 ℃ |
| Application | Dairy,food, beverage, pharmacy, cosmetic, etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by handle. |
| Three drive forms | Normally closed, normally opened and opened and closed by two air flues seperately. |
| Advantage | 1.Available in dead weight or spring loaded design |
| 2. With strong resistance to acid, alkali and high temperature | |
| 3. Choice of materials as per the fluid medium. | |
| 4. Appearance desigh: Keep pace with international latest designs | |
| 5. Fast acting, quick opening |
