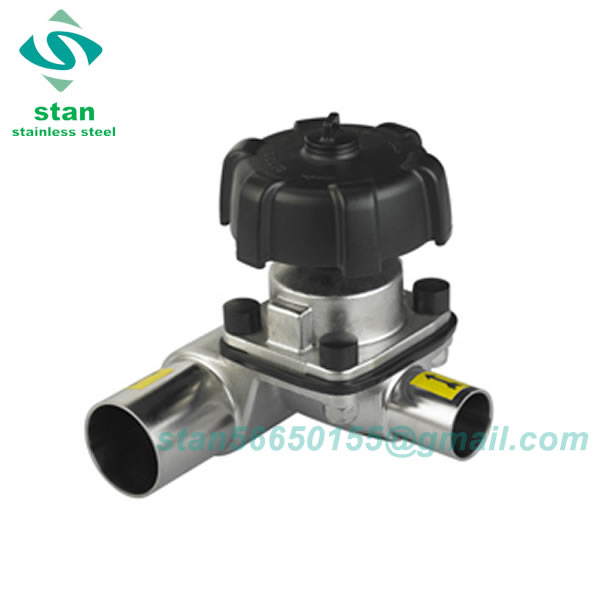

VDT Tee Type Diaphragm Valve
VDT series is a sanitary diaphragm valve with T type design, which is specially designed for using on dairy, beverage, foodstuff, pharmaceutical and other industries.It is excellent for flow control as well as for open/close duties.
• Operation: Manual or Pneumatic
• Size Available: 3/4"-2" or DN20-DN50
• Body Materials: AISI-316L
• Membrane Material: EPDM + PTFE or EPDM
Application
VDT series is a sanitary diaphragm valve with T type design, which is specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.
Materials
- Body: AISI-316L
- Membrane: EPDM+PTFE or EDM
The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13°F (-25°C), excellent heat-resistance 482°F (+250°C), tolerance to most chemicals, and excellent abrasion resistance to medium flow.
Standard Design
- Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
- End connections: butt-welded, sanitary clamp, or others upon request
- Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

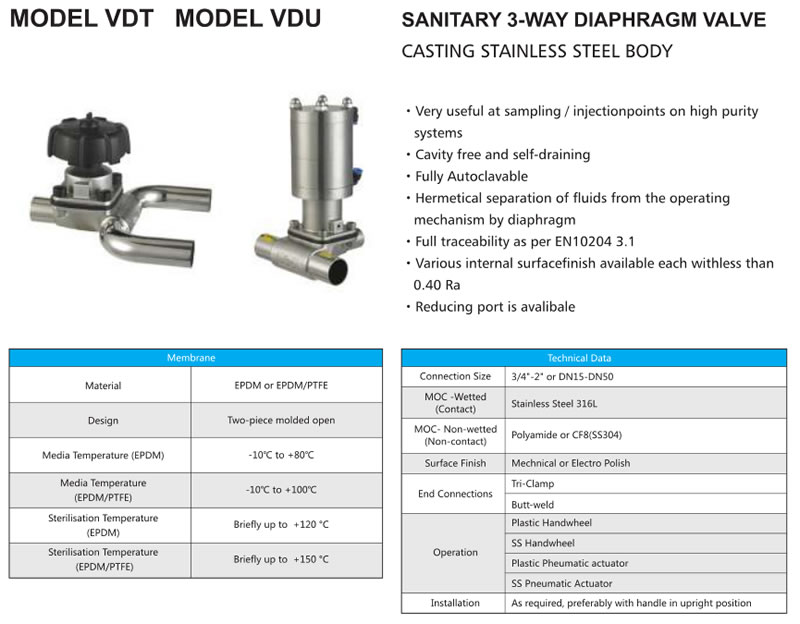

Technical Specification
- Max. working pressure: 147psi (10bar)
- Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
- Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)
- Available for CIP/SIP.

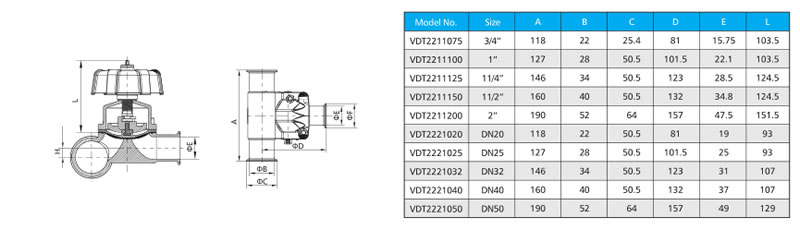

Drawings
