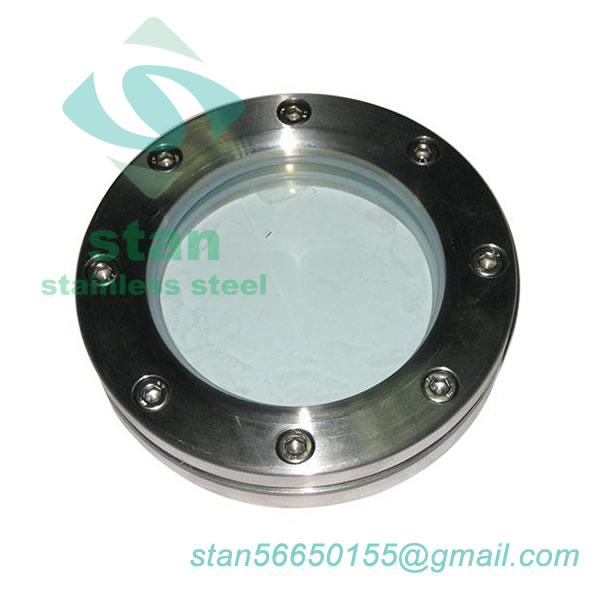

TSF Flange Type Sight Glass

Application

TSF Series flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

Materials

• Body Materials: AISI-304 or AISI-316L
• Tempered glass
• Gasket Material:Silicon, EPDM, FRM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

• Available in size from 1"-4", DN25-DN100 or others upon requirement
• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
• End connections: butt-welded, sanitary clamp, or others upon request
• Vertical or horizontal installation
• 360° view angle

Technical Specification

• Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
• Surface treatment: CNC machining
