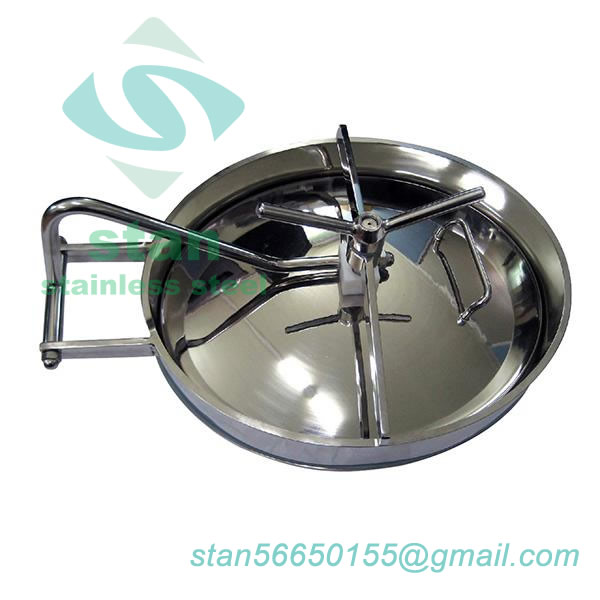

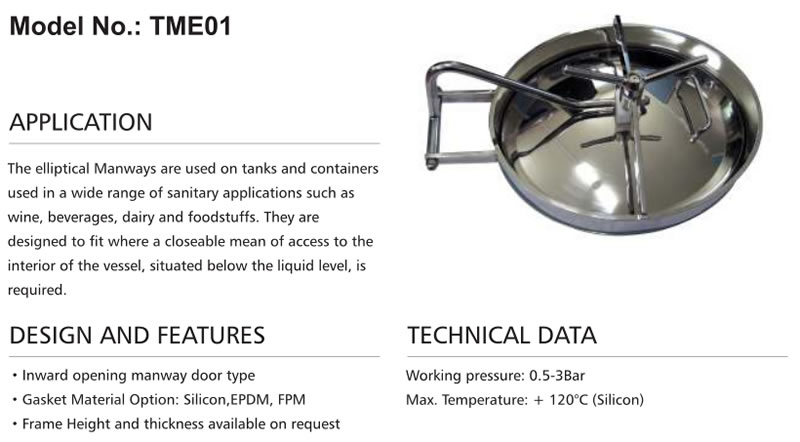

TME01 Elliptical Manhole Cover

Application

TME01 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

• Body Materials: AISI-304 or AISI-316L
• Gasket Material:Silicon, EPDM, FRM

Manhole seat and gasket  comply with FDA 21CFR177.2600

Standard Design

• Available in size: 430×330mm, 530×430mm
• Standard height: 75mm for 430×330mm, 80mm or 100mm for 530×430mm
• Standard thickness: 8mm
• Inward Opening
• Installation on the side surface of tank

Technical Specification

• Max. pressure: 43psi (3bar)
• Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
• Surface treatment: mirror inside, stain or mirror outside

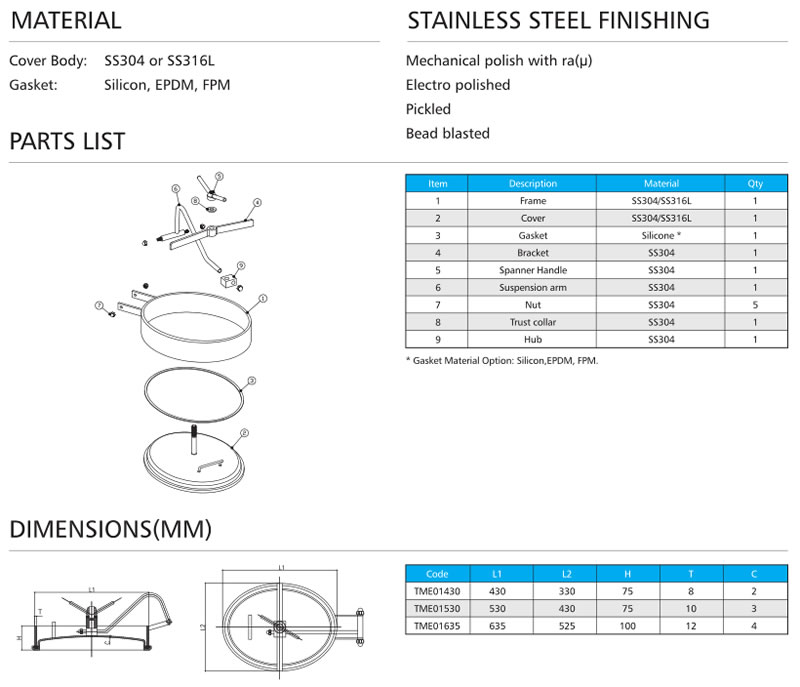

Drawings
