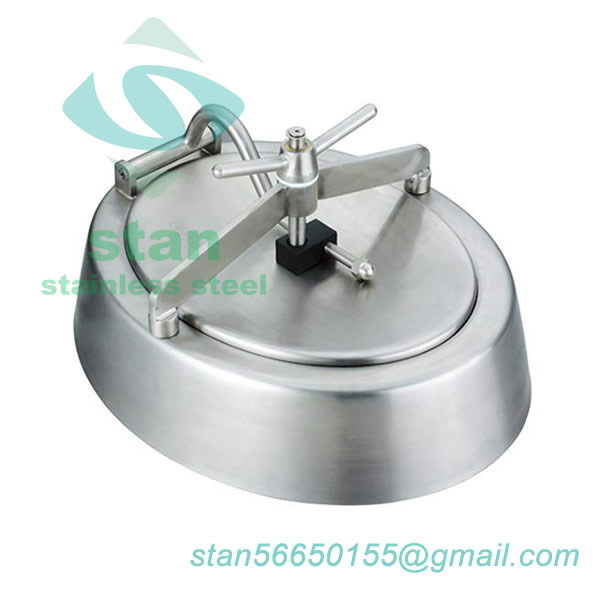

TME02 Elliptical Manhole Cover

Application: TME02 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

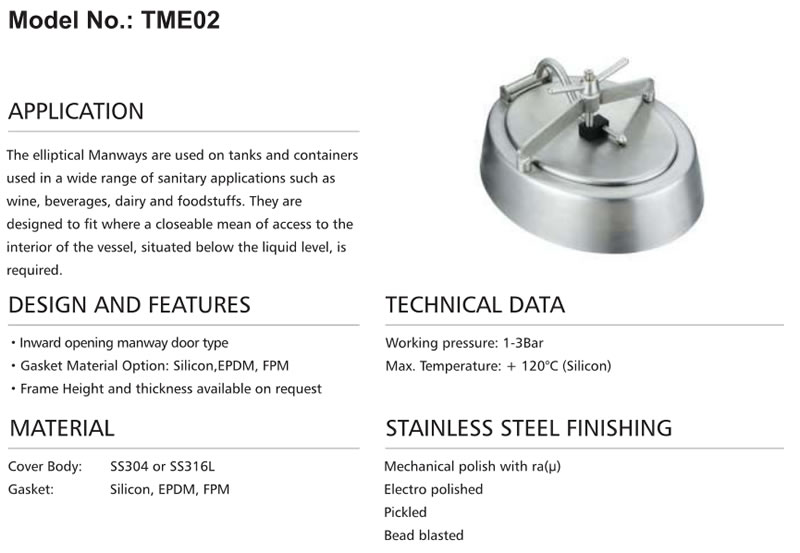

Application

TME02 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

  • Body Materials: AISI-304 or AISI-316L
  • Gasket Material:Silicon, EPDM, FRM

Manhole seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size: 430×330mm
  • Standard height: 133mm, or specific height upon requirement
  • Standard thickness: 5mm
  • Inward Opening
  • Installation on the side surface of tank

Technical Specification

  • Max. pressure: 43psi (3bar)
  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
  • Surface treatment: mirror inside, stain or mirror outside

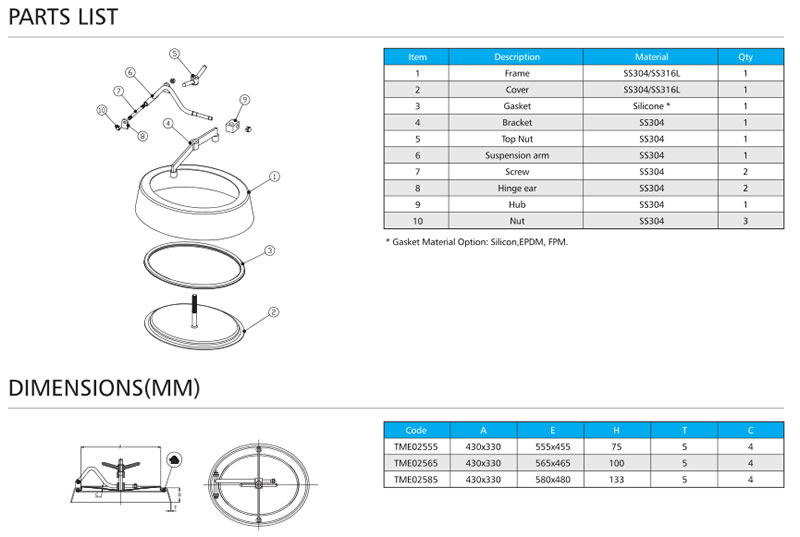

Drawings

Drawings

Drawings
